Description

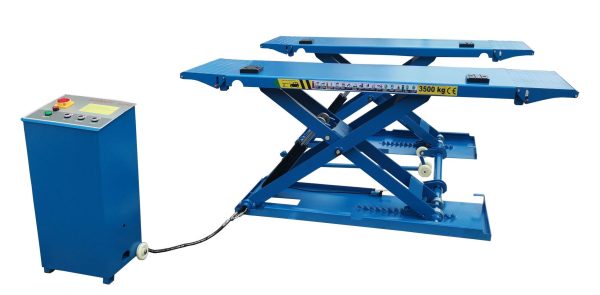

Strongest Locking Gear & Wider Platform of Mid Rise Mobile Scissor Lift 3.5T, JMRS3500
Mobile 3.5T Super Heavy Duty Commercial Mid Rise Car Scissor Lift packed with all the safety features. High Quality heavy duty Mid Rise Mobile car Scissor Lift with 1000 mm lifting height. With electromagnetic release. No air Compressor needed. The platform can be extended by locking the drive on ramps. Unique design to move and relocate the lift easily if needed. Ideal for tyre service, painting and bodywork workshops , also a perfect choice for home garage.
Cross beam for scissor lifts For Lifting SUV
Features:
- Top built quality with reinforced mechanism to kick start heavy lifting easier
- On ground and mobile use also Can be installed in ground by cutting concrete floor
- Low drive on cars
- Mechanical synchronization
- High-quality solid structure frames & bars
- Two powerful hydraulic cylinders
- Automatic Electric safety locks
- Electric Solenoid locking mechanism
- 11 lock position on every 90mm
- maximum height Limit switch
- anti-burst valves
- Reinforced floor frame
- balancing beams
- High grade powder coated, not paint!
Technical Data:
| Lifting capacity | 3500 kg | Max Width | 1760mm |
|---|---|---|---|
| Lifting height max. | 1000 mm | Power supply | 240 V / 50 HZ |
| Min. Height | 110 mm | ||
| Platform Length | 1400mm | Total Weight | 600 |
| Max Length | 1980mm | Package size | 2000 x 1700 x 200, ( box, L950 x W500 x H400) |
Standard Inclusions:
- Power unit
- Rubber blocks
- Mobile caster Kit
- CE-certificate / Safe work
- Instruction manual
Optional Accessories:
Cross beam For Lifting SUV
Aluminum Top Platform
Special Hydraulic Oil

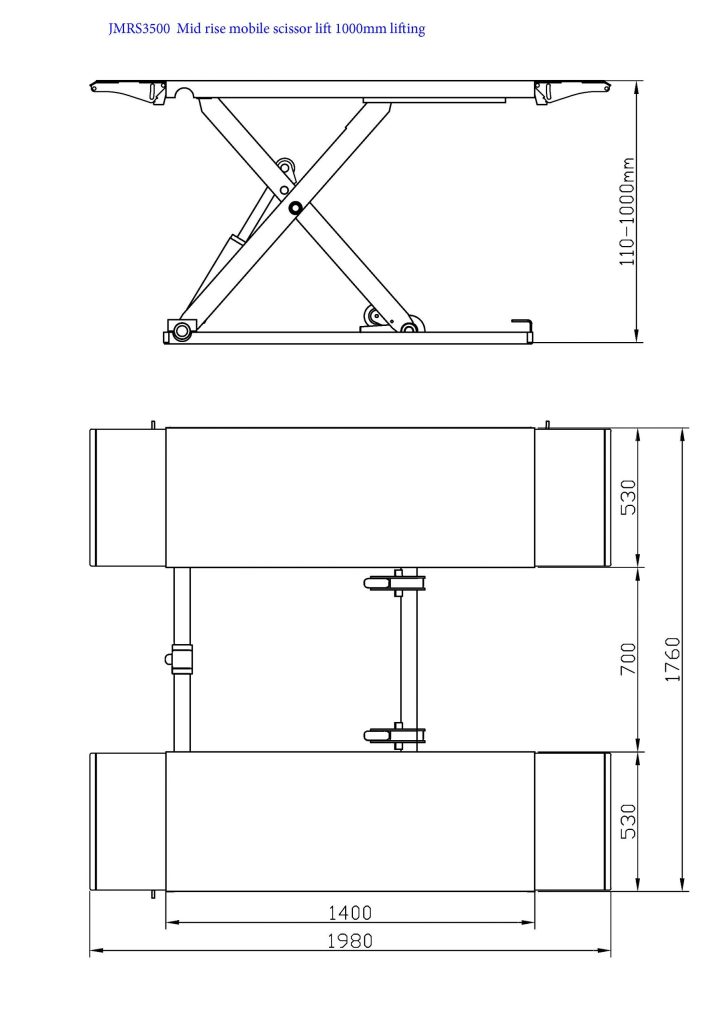

Dimensions:
