2 Post Hoist 5T Base Plate – Jackaroo
2 post 5T base plate hoist with 24V Extra Safe Control Box locking mechanism, safety limit switch, ELECTRIC Solenoid unlock , 3 phase power.
Jackaroo 2 post Hoist 5T Base Plate, Professional workshop Grade which enables to lift a wide range of vehicles safely from small passenger cars (for example: smart) up to Large vans and 4 wheel drive vehicles
With electrical release, round-up screw adjustable lifting pads and height adapters Included . Safety valves for More Safety.
NOTE: Floor Jackaroo Reinforcement Plates available if your floor doesn’t have enough strength to install heavy to post hoists.
Features:
- Top built quality with CE-certificate
- 5000 kg capacity
- Power supply 380v 50Hz
- Lifting height 1900 mm
- Aluminium Motor designed to last Long
- Solenoid Electric release
- Emergency lowering valve by a power blackout
- 2 hydraulic cylinders for less wear and tear

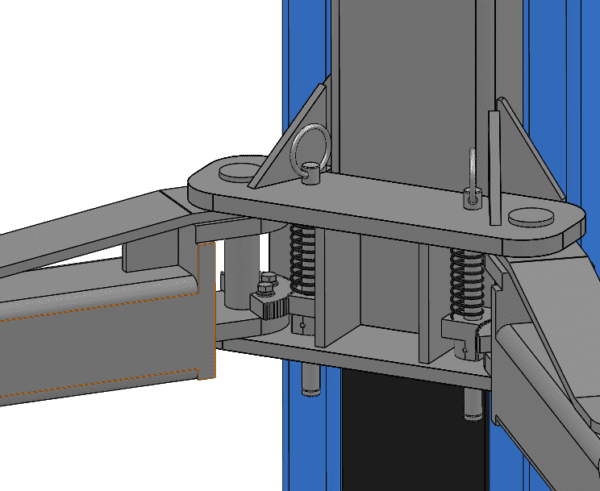

- The automatic arm locking device
- Synchronisation through steel ropes
- 2 & 3 Stage telescopic arms
Technical Data:
Lifting capacity | 5000 kg |
---|---|
Max lifting height | 1900 mm |
Low lifting point | 105 mm |
Lifting time | 45 sec. |
Power supply | 400V / 3 Phases |
Motor power | 2,2 kW |
Weight | 970 kg |
Standard Inclusions:
- 2 post lift incl. power unit
- Height adapter (4 pcs.)
- Anchor Bolts
- Dust Cover

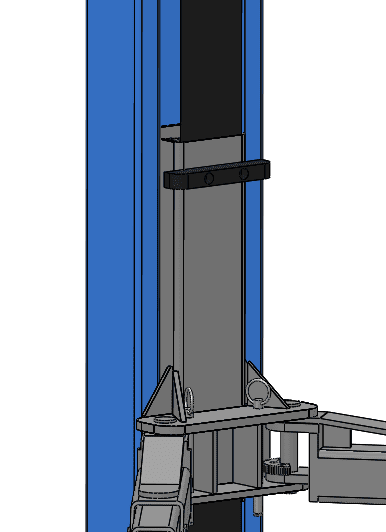

- Door protection
- Operating and maintenance instructions
- CE-Certificate
- Optional: Special Hydraulic oil
Dimensions:
