Pro Workshop Gear Pro Workshop Gear

2 post Hoist 4Ton Base Plate, Manual Lock Release JT4.0BP-M2

$ 2,790.00

Available on backorder

Add to Needlist
Add to Needlist
x

Quick Quote

1. My driveway is sealed with an even surface
2. There is reasonable vehicle access with height clearance.
3. I acknowledge the delivery is to the front door, carport, or closest practical delivery point as deemed by the driver.


Shipping Time: 6 weeks

Description

  Jackaroo 2 post Hoist 4Ton Base Plate

,Safe and affordable, Double side manual unlocking mechanism, single phase, light Commercial & home garage

Jackaroo 2 post Hoist 4T base plate, good value product for workshop & ideal for home garage, Double side manual locking system , adjustable lifting pads and height adaptors applicable . Hydraulic anti- burst valve  for extra Safe operation.

Professional workshop Grade 2 post car hoist With safe 24V control box, solenoid release switch is also available.

NOTE,  Jackaroo Floor Reinforcement Plates available if your concrete floor doesn’t have enough strength & thickness to install heavy 2 post hoists.

you can also buy this product on Ebay.

Dimension:

Pro Workshop Gear



Standard Inclusions:

  • Two post Hoist incl. power unit
  • Double Screw up Lifting Pad
  • Heavy Duty Anchor bolts. ( 10 PCs)
  • A Set of Height Adaptor (4 x 70mm)
  • Tool Tray & Tool Box ( 4 Sets)
  • Door protection
  • Foot Protection
  • Manual Book

Features:

  • 4000 kg capacity
  • 8 bent design for extra strength
  • Lift height 1820 mm
  • Heavy Duty Box Base Plate
  • Australian standard (safe work NSW)
  • Hydraulic anti- burst valve  for extra Safe operation
  • Power supply  240v /50Hz
  • Double oil sealing Piston makes maintain pressure and no oil leak

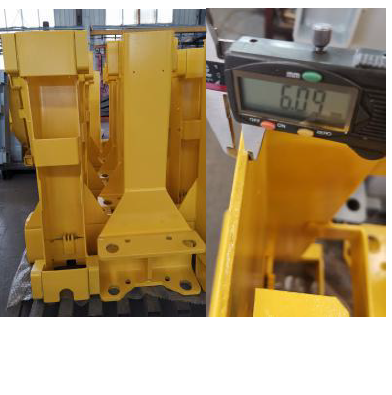

  • 6mm Carriage thickness
  • 14 mm integrated carriage base
  • Limit switch to avoid beyond lock range
  • foot protection
  • 2 hydraulic cylinders for less wear and tear
  • Automatic arm lock device
  • Synchronization through steel ropes
  • 2 stage telescopic arms

Technical Data

  • Lifting capacity  4000 kg
  • Max lifting height 1820 mm
  • Low lifting point 100 mm
  • Power supply 240 V
  • 15 AMP
  • lifting time: 50 S
  • Weight 645 kg
  • Note, Just special Hydraulic Oil recommended
