Description

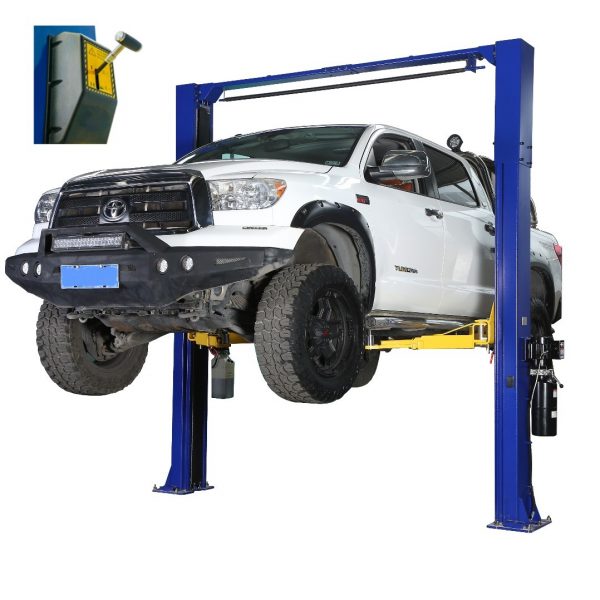

Commercial Heavy Duty 9 Bend Column Jackaroo 2 post 4.5 Ton clear floor hoist, single side manual unlocking mechanism, 3 phase & single phase power supply, durable and affordable built for commercial grade fit for all workshops & home garages.
The Jackaroo 2 post 4.5T clear floor hoist is packed with safety features like a hydraulic anti-burst valve and limit switches for extra safe operation.
It also comes with warranty!
Professional workshop Grade 2 post car hoist is also available.
NOTE: Jackaroo Floor Reinforcement Plates available if your concrete floor doesn’t have enough strength & thickness to install heavy 2 post hoists.
Features:
- 4500 kg capacity
- 9 bent column design for extra strength
- Lift height 1820 mm
- Australian standard (safe work NSW)
- Hydraulic anti- burst valve for extra Safe operation
- Power supply 240v, 415V /50Hz
- Double oil sealing Piston makes maintain pressure and no oil leak
- 6mm Carriage thickness
- 14 mm integrated carriage base

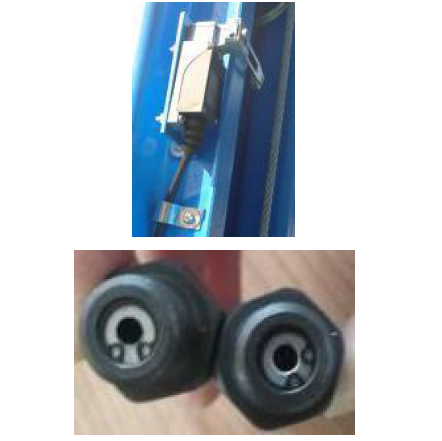

- Limit switch to avoid beyond lock range
- foot protection
- 2 hydraulic cylinders for less wear and tear
- Automatic arm lock device
- Synchronization through steel ropes

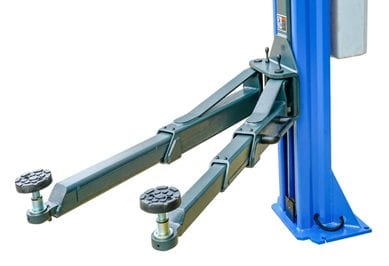

- 2 & 3 stage telescopic arms
Technical Data
- Lifting capacity 4500 kg
- Max lifting height 1820 mm
- Low lifting point 100 mm
- Power supply 240 V ( 15 AMP) & 415 V
- lifting time: 50 S
- Weight 645 kg
- Note: Just special Hydraulic Oil recommended
Standard Inclusions:
- Two-post Hoist incl. power unit

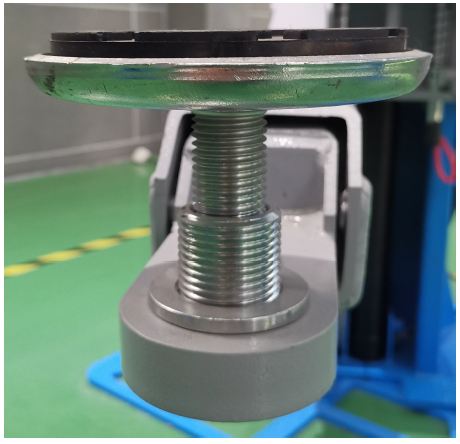

- Double Screw up Lifting Pad
- Heavy Duty Anchor bolts. ( 10 PCs)

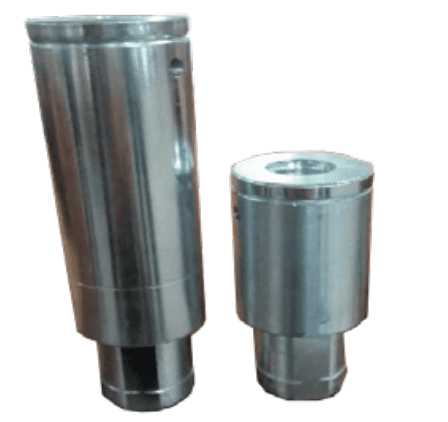

- A Set of Height Adaptor (4 x 70mm)
- Tool Tray & Tool Box ( 4 Sets)
- Door protection
- Foot Protection
- Manual Book

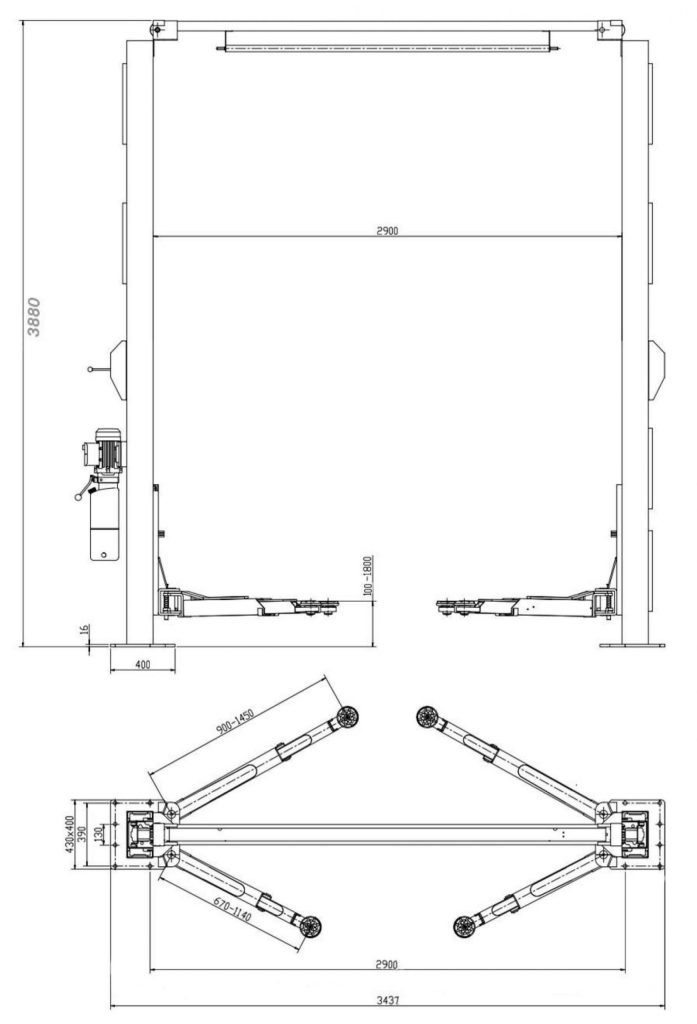

Dimension:
